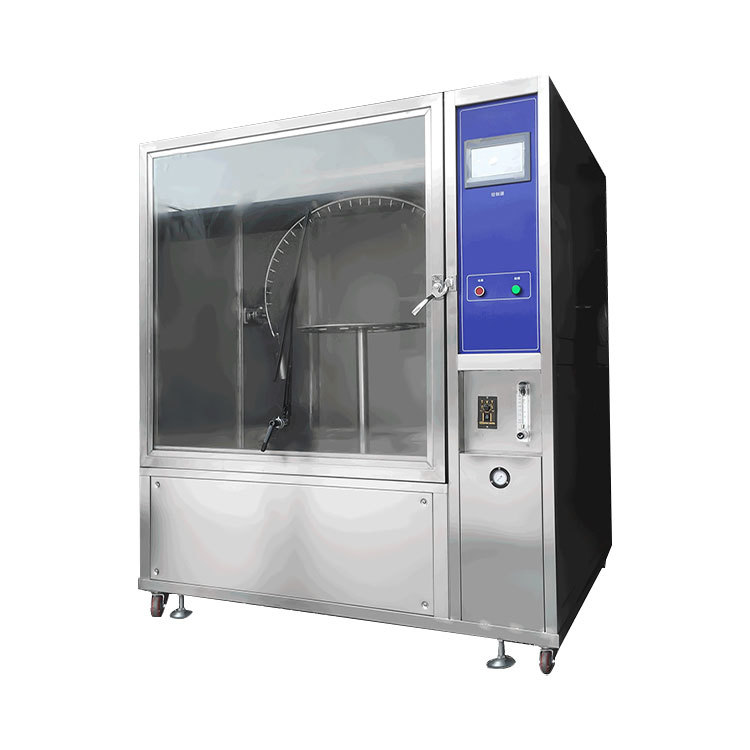

Rain test chamber
The rain test chamber is an environmental reliability testing equipment specifically designed to simulate the natural rainfall environment. By artificially recreating different intensities, angles, and rainfall volumes of rainfall scenarios, it tests and evaluates the waterproof performance of products. Its core value lies in helping enterprises identify potential sealing defects and performance degradation issues of products in the rain environment during the product development, production inspection, and quality control processes. This helps enhance the reliability and safety of the products in actual use, and it is widely applied in various fields such as electronics and electrical engineering, automotive manufacturing, aerospace, medical devices, outdoor lighting, etc.
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
600MM |
600MM |
600MM |
600MM |
600MM |
600MM |
600MM |
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
800MM |
800MM |
800MM |
800MM |
800MM |
800MM |
800MM |
| Enforce Standards |
IPx1.2 |
IPx3.4 |
IPx5.6 |
IPx1.2.3.4 |
IPx3.4.5.6 |
IPx6K |
IPx9K |
Inner Box Dimensions
(WHD) |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
1000MM |
| Swing pipe water spray hole diameter |
∅0.4mm |
| Water spray hole spacing |
50mm |
| Spray ring radius |
300(mm) |
| Spray pipe diameter |
∅16mm |
| Swing pipe swing angle range |
±60°±90° |
| Swing pipe spray angle |
±60°±90° |
| Swing speed adjustment |
0~30RPM/min(Adjustable) |
| Rain test water pressure |
0.1~6bpa Adjustable |
| Water flow supply volume |
At 4 bar pressure, the flow rate reaches 39.2 L/min |
| Test bench speed |
0~20rpm/min(Adjustable) |
| Test bench area |
∅400mm,Load capacity is 15 kg, and the sample rack is adjustable from 0-300 mm |
| Lead test hole |
There are power lead test holes on the box body, allowing for external power connection. Additionally, the spray lamp lighting time can be adjusted |
| Box structure |
1. Both the inner and outer enclosures of the test chamber are made of SUS304 stainless steel plates. The surface of the outer shell is treated with sandblasting to create a textured finish, while the inner enclosure is a high-quality stainless steel mirror plate.
2. The spray water pipes are also made of stainless steel.
3. The working chamber and all other parts in contact with water are made of stainless steel or copper materials. |
| Control system |
1. Speed control device: Both the swing pipe and the rotating disc for speed control use imported frequency converters.
2. Main configuration: Water storage tank, water pump, pressure reducing and diversion device, pressure gauge, flow meter, spray pipe assembly, swing pipe swing amplitude driving mechanism, worktable rotation mechanism, electrical control system, visible tempered glass door, deceleration mechanism, etc |
| Widely used |
Technical parameters: The climate environment has a significant impact on the aging of products, the fading of pigments, and the corrosion of metals. Therefore, aging tests are receiving increasing attention in industries such as rubber, plastics, chemicals, automobiles, and textiles. There are many factors in the climate environment, including sunlight exposure, temperature, humidity, and rain exposure. The waterproof test chamber is a device for simulating the rain exposure environment. |
Application fields
1. Electronics and Electrical Engineering Industry: Products such as mobile phones, tablet computers, smart watches, outdoor routers, sensors, etc., have their waterproof performance of the outer shells and interfaces directly affecting the product lifespan and usage safety. Through the rain test chamber, the sealing performance of the products in the rain environment can be tested to prevent water from seeping in and causing circuit short circuits or component damage.
2. Automotive Manufacturing Industry: Lamps, sensors, connectors, window seals, engine compartment components of automobiles, etc., all need to function normally in rainy days or during car washing scenarios. The rain test chamber can simulate scenarios such as heavy rain and high-pressure car washing to test the waterproof performance of these components, ensuring the driving safety of automobiles in complex weather conditions.
3. Aerospace Industry: Aircraft and satellite equipment in the aerospace sector will encounter various harsh weather conditions during flight, such as rain, snow, and ice. The rain test chamber can simulate the high-altitude rainfall environment, conducting waterproof tests on the equipment's casing, interfaces, and electronic components to ensure the reliability of the equipment in extreme conditions.
4. Medical equipment industry: For instance, outdoor first-aid equipment, surgical instrument disinfection equipment, etc., some of which need to be used or transported in humid or rainy environments. Rain testing chambers can test their waterproof performance to prevent rain from contaminating the equipment and affecting its usage effect, ensuring medical safety.
5. Outdoor Lighting Industry: Outdoor lighting products such as street lamps, landscape lights, and garden lights are exposed to the natural environment for a long time and therefore need to have excellent waterproof properties. Rain testing chambers can simulate different intensities of rainfall to test the sealing and insulation performance of the lamps, ensuring that the lamps can emit light normally and without any safety hazards during rainy days.
Details presentation

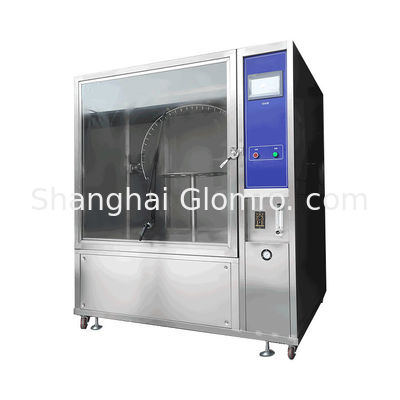

Physical picture
