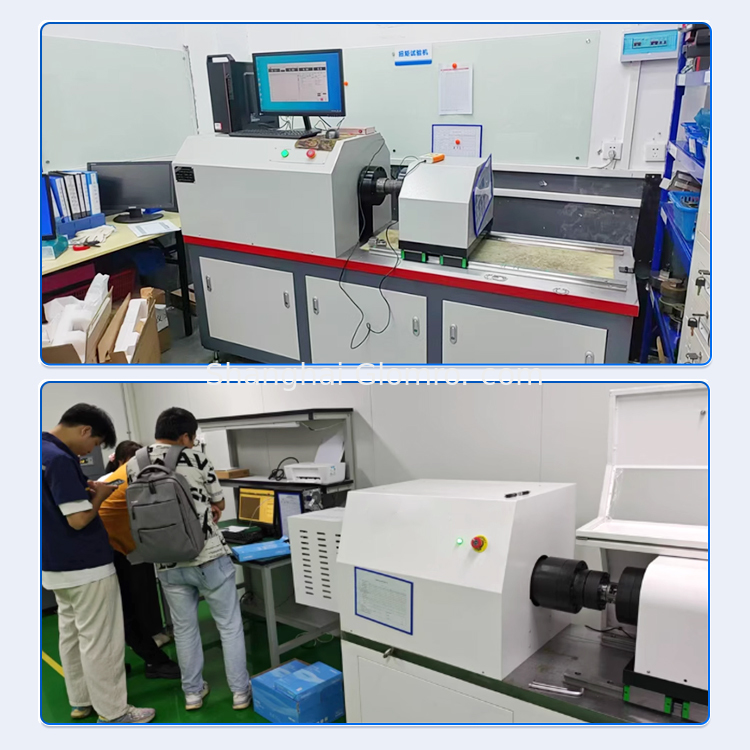

Metal wire torsion testing machine
The torsion testing machine is mainly used for the torsion testing of hardware components, parts, raw materials, semi-finished parts, and finished parts. The tested samples are installed between adjustable fixtures to adapt to the torsion mechanical performance tests of different tested samples. The testing machine is controlled by a computer and can collect data such as torque, peak value, angle, and curves; the display shows the torque-time, twist-angle-time, and torque-twist-angle test curves of the tested parts; it can realize the storage, extraction, and printing of test data, as well as the storage and printing of test reports.
| Digital display type torsion testing machine |
| Model |
BXT-10W |
BXT-20W |
BXT-500W |
BXT-1000W |
BXT-2000W |
BXT-5000W |
| Maximum torque |
10N.M |
20N.M |
500N.M |
1000N.M |
2000N.M |
5000N.M |
| Measurement range |
2%-500%N.M |
| Relative Error of Test Torque Indication |
Level 1 |
| Relative Indication Error of Test Torque Repeatability |
≤±1% |
| Torque resolution |
1/500,000 of the maximum torque, without grading |
| Moving Distance Between Chucks |
400mm |
| Coaxiality Accuracy Between Two Fixtures |
Within a range of 1000mm≤∅0.2mm |
| Torsion angle measurement range |
0～10000° |
| Relative error of the torsion angle measurement |
±1% |
| Torsion angle resolution |
±0.001° |
| Torsion angle accuracy |
0.009° |
| Torsional speed |
0.01 - 720°/min infinitely variable speed control |
| Relative error of torque reversal speed |
Within ±1.0% of the set value |
| Power supply |
220V 50Hz AC |
| Torsion Direction |
Forward rotation Reverse rotation |
