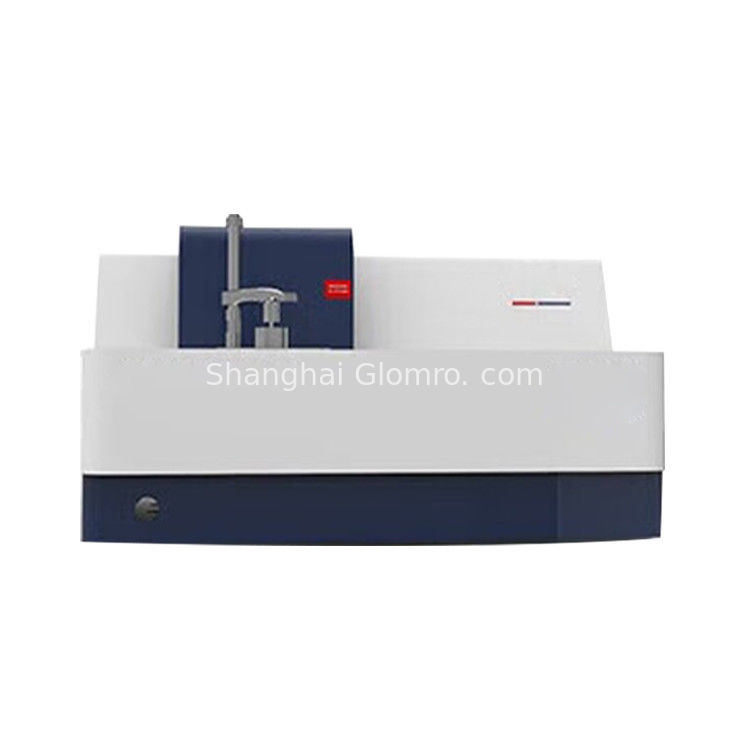

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer

Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: BAXIT
Αριθμό μοντέλου: BXT-DSF600/BXT-DSF900
Ποσότητα παραγγελίας min: 1
Τιμή: US$17,805-18,780/unit
Συσκευασία λεπτομέρειες: Καρτόνι/ξύλινο κουτί
Χρόνος παράδοσης: 5-8Ημέρα εργασίας
Όροι πληρωμής: Λ/Κ, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 10000 κομμάτια
Λεπτομερής ενημέρωση
Σχήμα: BXT-DSF600 Μητρώο ανίχνευσης: Βάση σιδήρου, χάλκινου, αλουμινίου, νάιλον, κοβάλτου, μαγνησίου, τιτανίου, ψευδαργύρου, μόλυβδου κλπ
Χρόνος δοκιμής: Ανάλογα με τον τύπο του δείγματος, είναι γενικά περίπου 25 δευτερόλεπτα. Οπτικό σύστημα: Οπτικό σύστημα πλήρους φάσματος Paschen-Runge Rowland Circle
Περιοχή μήκους κύματος: 160-800nm Εστιακό μήκος: 300 χιλιοστά
Ανιχνευτής: Πολυ-CMOS αισθητήρας εικόνας υψηλής ανάλυσης Ηλεκτρόδιο: Ηλεκτρόδιο πίδακα βολφραμίου
Επισημαίνω:

Direct Reading Metal Analyzer

,

Fully Direct Reading Metal Analysis Spectrometer


Περιγραφή προϊόντων

Full-spectrum direct reading spectrometer


            The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
            The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer 0

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer 1

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer 2

Technical Specifications

Model BXT-DSF600 BXT-DSF900
Detection Matrix Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc. Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.
Testing time Depending on the type of sample, it is generally around 25 seconds Depending on the type of sample, it is generally around 25 seconds
Optical system Paschen-Runge Rowland Circle Full-Spectrum Optical System Paschen-Runge Rowland Circle Full-Spectrum Optical System
Wavelength range 160-800nm 130-800nm
Focal length 300mm 400mm
Detector High-resolution multi-CMOS image sensor International-level detector module, high-performance linear CCD
Electrode Tungsten Jet Electrode Tungsten Jet Electrode
Analysis Gap Sample table analysis gap:3. 5mm Sample table analysis gap:3.5mm
Working temperature (10-35)℃ (10-35)℃
Storage temperature (0-45)℃ (0-45)℃
Work humidity 20%-80% 20%-80%
Purity requirements for argon gas 99.999% 99.999%
Argon gas inlet pressure 0.5MPa 0.5MPa
In an argon flow  Excitation flow rate is approximately 3. 5L/min Excitation flow rate is approximately  3.5L/min
Light source type Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS) Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)
Discharge frequency 100-1000 Hz 100-1000 Hz
Discharge current Max 380A Max 380A
Excitation Stage Aperture 13mm 13mm
Vacuum system Vacuum system Vacuum system
Working power supply 220V AC,50/60Hz,Protective grounded single-phase power supply 220VAC,50/60Hz,Protective grounded single-phase power supply
Instrument size 720X560X370mm 860x660x360mm
Instrument weight 65kg 80kg

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer 3

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer 4

 Packing & Delivery

BAXIT Metal Analyzer Fully Direct Reading Metal Analysis Spectrometer 5

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
